CFM56 Engine Parts: LPT Guide Vane Stage 2 Aircraft Engine Components

Precision Engineering for CFM56 Engine Parts: LPT Guide Vane Stage 2 Aircraft Engine Components

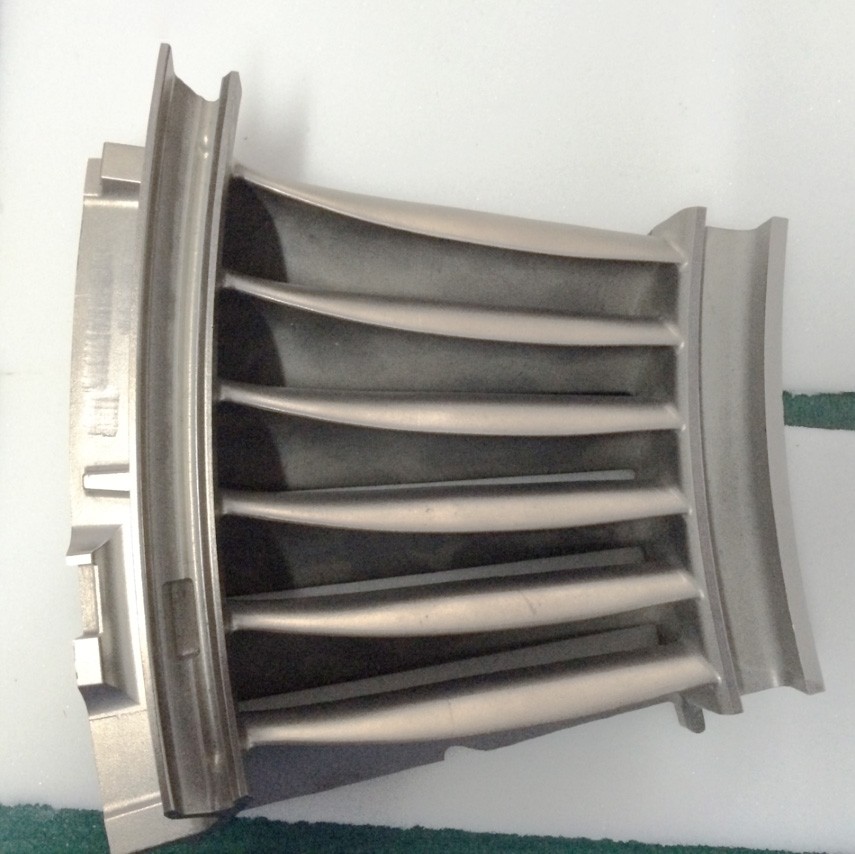

The LPT Guide Vane Stage 2, also known as the Nozzle Segment Stage 2, is a critical component in the CFM56 engine, which powers iconic aircraft like the Boeing 737 series and Airbus A320 family. This component plays a vital role in guiding airflow within the low-pressure turbine (LPT) system, ensuring maximum efficiency and reliability. Its advanced design and robust construction make it indispensable for modern aviation.

Let’s explore the features, functions, and advantages of this precision-engineered component and its significance in enhancing aircraft performance.

Key Features of the LPT Guide Vane Stage 2

The LPT Guide Vane Stage 2 is meticulously designed to meet the demanding requirements of aviation engines. Its precision construction ensures consistent performance and durability.

1. Advanced Material Construction

• Heat Resistance: The LPT Guide Vane Stage 2 is crafted from advanced nickel-based superalloys, such as Inconel 718 or Rene 80, renowned for their exceptional ability to withstand extreme temperatures in the low-pressure turbine system, often exceeding 980°C. These high-performance materials maintain their structural integrity and mechanical properties even in the most demanding operational environments. Additionally, the application of thermal barrier coatings (TBCs), such as yttria-stabilized zirconia (YSZ), provides an extra layer of protection, reducing thermal stress and prolonging the vane's durability.

• Corrosion Resistance: To combat the harsh conditions of high-velocity gases and environmental factors, the LPT Guide Vane Stage 2 is engineered with superior corrosion-resistant properties. The use of oxidation-resistant nickel and cobalt alloys, combined with ceramic coatings, shields the vane from degradation caused by oxidation, sulfidation, and erosive particles. These materials not only extend the vane’s operational lifespan but also enhance reliability, reducing the risk of performance deterioration over time.

• By leveraging these cutting-edge materials, the LPT Guide Vane Stage 2 achieves unmatched durability, reliability, and efficiency, meeting the stringent demands of modern aviation and ensuring consistent engine performance.

2. Aerodynamic Design

• Optimized Airflow: Its carefully crafted aerodynamic shape ensures smooth and efficient airflow into the turbine blades.

• Energy Efficiency: Reduces turbulence and energy loss, contributing to the overall performance of the engine.

3. Precision Engineering

• Exact Tolerances: The nozzle segment is manufactured to the exacting specifications of CFM International, ensuring perfect integration with the CFM56 engine system.

• Segmented Structure: The vane is designed in segments to facilitate ease of installation and maintenance.

4. Durability and Reliability

• Built to endure prolonged high-stress operations, minimizing wear and tear.

• Enhances the engine’s reliability, reducing the need for frequent replacements.

The Role of the LPT Guide Vane Stage 2 in the CFM56 Engine

As an integral part of the low-pressure turbine system, the LPT Guide Vane Stage 2 performs several critical functions:

1. Guiding Airflow

The vanes precisely direct high-pressure, high-temperature gases from the combustion chamber to the turbine blades, optimizing energy transfer.

2. Improving Engine Efficiency

By maintaining smooth and efficient airflow, the vanes enhance turbine efficiency, which improves fuel economy and reduces emissions.

3. Reducing Mechanical Stress

The aerodynamic design minimizes vibrations and turbulence, protecting downstream components and extending engine life.

4. Supporting Operational Safety

By ensuring consistent pressure and airflow, the LPT Guide Vane Stage 2 reduces the risk of mechanical failures, enhancing flight safety.

Importance of the LPT Guide Vane Stage 2 in Aviation

The LPT Guide Vane Stage 2 is a small but crucial component that significantly impacts engine performance and safety.

1. Enhanced Fuel Efficiency

Its optimized design reduces energy loss, lowering fuel consumption and operational costs for airlines.

2. Prolonged Engine Life

The use of durable materials and precision manufacturing minimizes wear and tear, extending the engine’s operational lifespan.

3. Environmental Benefits

Improved turbine efficiency leads to reduced emissions, helping airlines meet stringent environmental regulations.

4. Compatibility Across Models

The vane is compatible with CFM56 engines used in the Boeing 737 Classic and Airbus A320 series, making it a versatile solution for various aircraft types.

Advantages for Airlines

Airlines operating aircraft with CFM56 engines benefit significantly from the high performance and reliability of the LPT Guide Vane Stage 2:

• Reduced Maintenance Costs: Durable construction minimizes the need for frequent repairs and replacements.

• Improved Fleet Reliability: Ensures consistent engine performance, reducing downtime and delays.

• Fuel Savings: Enhanced turbine efficiency translates to significant fuel cost savings.

Why Choose Liyan International for CFM56 Engine Parts?

When sourcing critical aviation components like the LPT Guide Vane Stage 2, quality and reliability are paramount. Liyan International specializes in producing precision-engineered parts that meet the highest standards in the aviation industry.

1. Advanced Manufacturing

Utilizing state-of-the-art equipment, Liyan International ensures all components meet certifications such as AS9100D and NADCAP.

2. Trusted by Airlines Worldwide

With a reputation for excellence, Liyan International supplies parts to leading airlines and operators globally.

3. Comprehensive Customer Support

Dedicated support ensures clients receive the right components for their fleets, enhancing reliability and performance.

Maintenance and Replacement: Extending Engine Life

Regular maintenance is essential to ensure the safety and performance of the CFM56 engine. Replacing worn-out components, such as the LPT Guide Vane Stage 2, prevents potential issues and extends the engine’s operational life.

Benefits for Airlines

• Ease of Replacement: The segmented design allows for quick and seamless integration during maintenance.

• Readily Available Parts: High-quality spares are easily accessible from trusted suppliers like Liyan International.

• Cost Savings: Regular maintenance reduces long-term operational costs.

Choose Liyan International for High-Quality Aircraft Components

The LPT Guide Vane Stage 2 is a testament to precision engineering, ensuring efficiency, safety, and reliability in modern aviation. Its advanced design and robust construction make it indispensable for airlines aiming to optimize performance and reduce operational costs.

For durable, high-performance engine components, Liyan International offers trusted solutions. Contact us today to learn more about our products and how we can support your aviation needs.
